Get started with Strawberry Shake in a Console application

We are still working on the documentation for Strawberry Shake so help us by finding typos, missing things or write some additional docs with us.

In this tutorial we will walk you through the basics of adding a Strawberry Shake GraphQL client to a console project. For this example we will create a simple console application and fetch some simple data from our demo backend.

Strawberry Shake is not limited to console application and can be used with any .NET standard compliant library.

In this tutorial, we will teach you:

  • How to add the Strawberry Shake CLI tools.
  • How to generate source code from .graphql files, that contain operations.
  • How to use the generated client in a classical or reactive way.
  • How to disable state management for ASP.NET core use-cases.

Step 1: Add the Strawberry Shake CLI tools

The Strawberry Shake tool will help you to setup your project to create a GraphQL client.

Open your preferred terminal and select a directory where you want to add the code of this tutorial.

  1. Create a dotnet tool-manifest.
Bash
dotnet new tool-manifest
  1. Install the Strawberry Shake tools.
Bash
dotnet tool install StrawberryShake.Tools --local

Step 2: Create a console project

Next, we will create our Blazor project so that we have a little playground.

  1. First, a new solution called Demo.sln.
Bash
dotnet new sln -n Demo
  1. Create a new console application.
Bash
dotnet new console -n Demo
  1. Add the project to the solution Demo.sln.
Bash
dotnet sln add ./Demo

Step 3: Install the required packages

Strawberry Shake supports multiple GraphQL transport protocols. In this example we will use the standard GraphQL over HTTP protocol to interact with our GraphQL server.

  1. Add the StrawberryShake.Transport.Http package to your project.
Bash
dotnet add Demo package StrawberryShake.Transport.Http
  1. Add the StrawberryShake.CodeGeneration.CSharp.Analyzers package to your project in order to add our code generation.
Bash
dotnet add Demo package StrawberryShake.CodeGeneration.CSharp.Analyzers

When using the HTTP protocol we also need the HttpClientFactory and the Microsoft dependency injection.

  1. Add the Microsoft.Extensions.DependencyInjection package to your project in order to add our code generation.
Bash
dotnet add Demo package Microsoft.Extensions.DependencyInjection
  1. Add the Microsoft.Extensions.Http package to your project in order to add our code generation.
Bash
dotnet add Demo package Microsoft.Extensions.Http

Step 4: Add a GraphQL client to your project using the CLI tools

To add a client to your project, you need to run the dotnet graphql init {{ServerUrl}} -n {{ClientName}}.

In this tutorial we will use our GraphQL workshop to create a list of sessions that we will add to our Blazor application.

If you want to have a look at our GraphQL workshop head over here.

  1. Add the conference client to your console application.
Bash
dotnet graphql init https://hc-conference-app.azurewebsites.net/graphql/ -n ConferenceClient -p ./Demo
  1. Customize the namespace of the generated client to be Demo.GraphQL. For this head over to the .graphqlrc.json and insert a namespace property to the StrawberryShake section.
JSON
{
"schema": "schema.graphql",
"documents": "**/*.graphql",
"extensions": {
"strawberryShake": {
"name": "ConferenceClient",
"namespace": "Demo.GraphQL",
"url": "https://hc-conference-app.azurewebsites.net/graphql/",
"dependencyInjection": true
}
}
}

Now that everything is in place let us write our first query to ask for a list of session titles of the conference API.

  1. Choose your favorite IDE and the solution. If your are using VSCode do the following:
Bash
code ./Demo
  1. Create new query document GetSessions.graphql with the following content:
GraphQL
query GetSessions {
sessions(order: { title: ASC }) {
nodes {
title
}
}
}
  1. Compile your project.
Bash
dotnet build

With the project compiled you now should see a directory Generated. The generated code is just there for the IDE, the actual code was injected directly into roslyn through source generators.

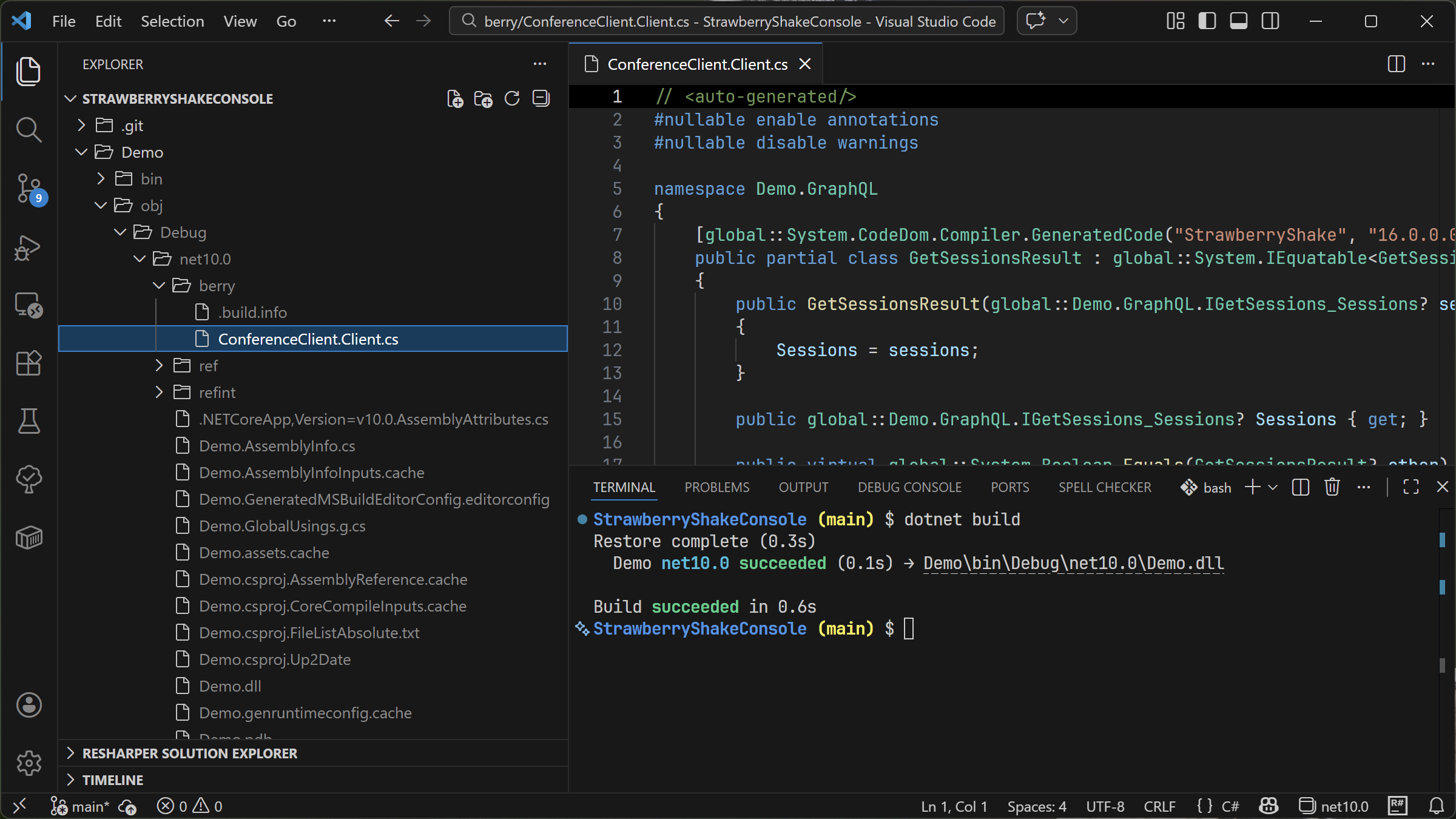

Visual Studio code showing the generated directory.

  1. Head over to the Program.cs and add the new ConferenceClient to the dependency injection.

In some IDEs it is still necessary to reload the project after the code was generated to update the IntelliSense. So, if you have any issues in the next step with IntelliSense just reload the project and everything should be fine.

C#
using System;
using Microsoft.Extensions.DependencyInjection;
using Demo.GraphQL;
namespace Demo
{
class Program
{
static void Main(string[] args)
{
var serviceCollection = new ServiceCollection();
serviceCollection
.AddConferenceClient()
.ConfigureHttpClient(client => client.BaseAddress = new Uri("https://hc-conference-app.azurewebsites.net/graphql"));
IServiceProvider services = serviceCollection.BuildServiceProvider();
IConferenceClient client = services.GetRequiredService<IConferenceClient>();
}
}
}

Step 5: Use the ConferenceClient to perform a simple fetch

In this section we will perform a simple fetch with our ConferenceClient and output the result to the console.

  1. Head over to Program.cs.

  2. Add the following code to you main method to execute the GetSessions query.

C#
static async Task Main(string[] args)
{
var serviceCollection = new ServiceCollection();
serviceCollection
.AddConferenceClient()
.ConfigureHttpClient(client => client.BaseAddress = new Uri("https://hc-conference-app.azurewebsites.net/graphql"));
IServiceProvider services = serviceCollection.BuildServiceProvider();
IConferenceClient client = services.GetRequiredService<IConferenceClient>();
var result = await client.GetSessions.ExecuteAsync();
result.EnsureNoErrors();
foreach (var session in result.Data.Sessions.Nodes)
{
Console.WriteLine(session.Title);
}
}
  1. Start the console application with dotnet run --project ./Demo and see if your code works.

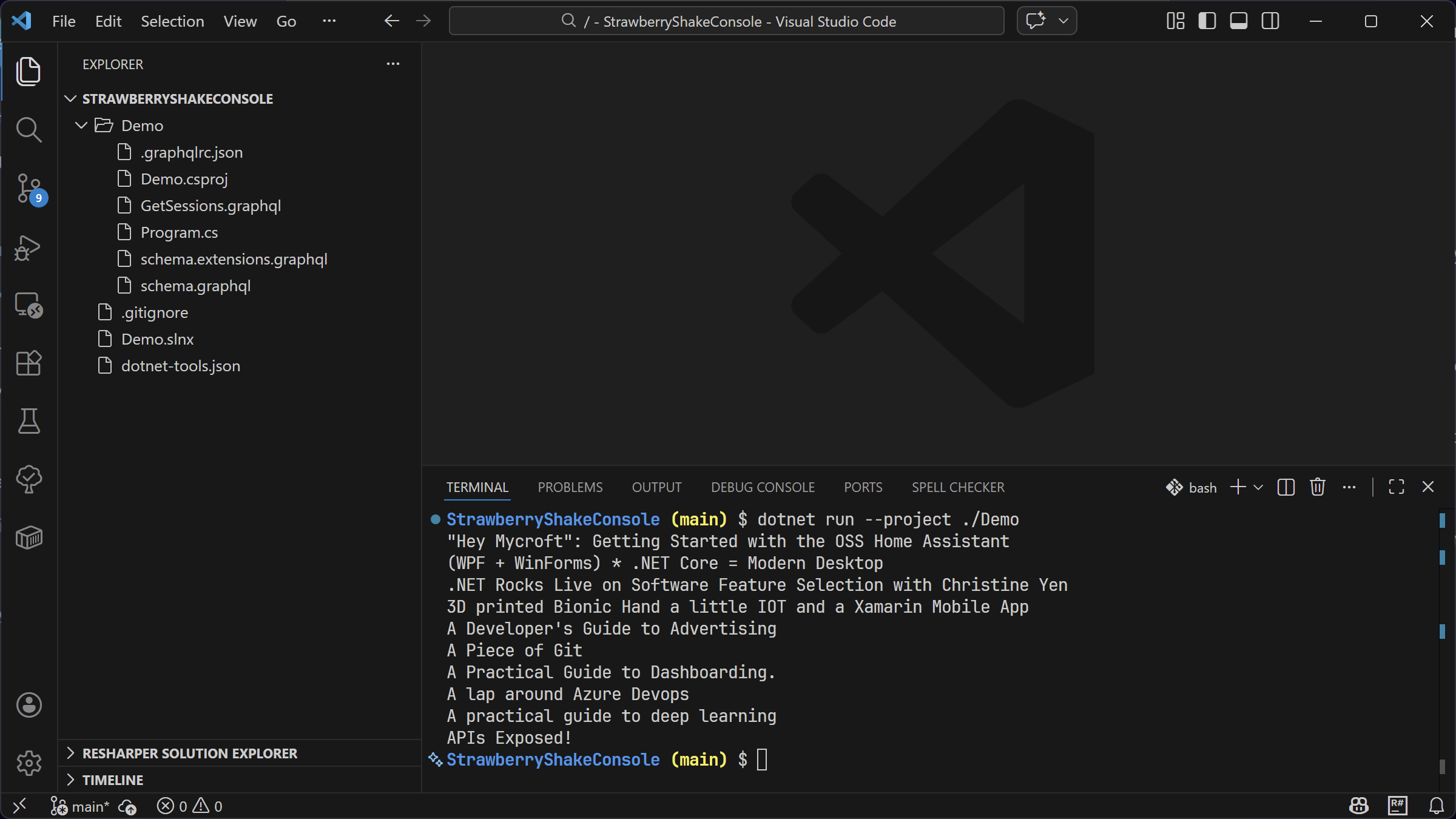

Started console application that shows a list of sessions
