Introduction

This quick start guide will walk you through setting up a federated GraphQL API using Fusion. By the end of this tutorial, you'll have a gateway that unifies two independent GraphQL services—Products and Orders—into a single, cohesive API. This unified API will allow clients to query data from both services seamlessly, demonstrating the power and flexibility of Fusion in orchestrating microservices.

You can find the complete code for this tutorial in the Fusion Quick Start repository

Prerequisites

• .NET SDK installed on your machine
• Checkout the initial code

Step 1: Understanding the Source Schemas

We start with two separate GraphQL services, each with its own schema and responsibilities:

Orders Service

The Orders service manages order-related data. Its schema defines two primary types: Order and LineItem.

type LineItem {
  id: Int!
  quantity: Int!
  productId: Int!
}

type Order {
  id: Int!
  name: String!
  description: String!
  items: [LineItem!]!
}

type Query {
  orders: [Order!]! @cost(weight: "10")
}

• LineItem represents an individual item within an order, including the productId that references a product.
• Order encapsulates order details and contains a list of LineItem entries.
• The root Query allows clients to fetch all orders.

Products Service

The Products service handles product-related data. Its schema defines the Product type.

type Product {
  id: Int!
  name: String!
  sku: String!
  description: String!
  price: Decimal!
}

type Query {
  products: [Product!]! @cost(weight: "10")
}

• Product represents an item available for purchase.
• The root Query enables clients to fetch all products.

These two services are completely independent and unaware of each other's existence. Our goal is to use Fusion to create a gateway that unifies these schemas into a single API.

Step 2: Setting Up the Fusion Gateway

The Fusion gateway will act as a single entry point for clients, hosting the unified schema that combines the Products and Orders services.

Creating the Gateway Project

Begin by creating a new web project for the gateway:

dotnet new web -n quick-start.Gateway
cd quick-start.Gateway

Add the Fusion package to your project:

dotnet add package HotChocolate.Fusion

Configuring the Gateway

Update the Program.cs file to set up the Fusion gateway:

var builder = WebApplication.CreateBuilder(args);

builder.Services.AddHttpClient("Fusion");

builder.Services
    .AddFusionGatewayServer()
    .ConfigureFromFile("gateway.fgp")
    // Note: AllowQueryPlan is enabled for demonstration purposes. Disable in production environments.
    .ModifyFusionOptions(x => x.AllowQueryPlan = true);

var app = builder.Build();

app.MapGraphQL();

app.Run();

In this configuration:

• AddFusionGatewayServer() registers the Fusion gateway services.
• ConfigureFromFile("gateway.fgp") instructs the gateway to load its configuration from the gateway.fgp file, which we will create later.
• ModifyFusionOptions() allows you to modify Fusion-specific settings, such as enabling query plan visualization for debugging purposes.

Step 3: Preparing the Source Schemas for Composition

Before the gateway can unify the schemas, we need to prepare each service by creating configuration files and packaging them as Fusion subgraph packages.

Installing the Fusion CLI Tool

Install the Fusion command-line tool, which we'll use to pack and compose the subgraphs:

dotnet tool install -g HotChocolate.Fusion.CommandLine

Creating Configuration Files

For each service, create a subgraph-config.json file that specifies the subgraph name and its endpoint.

Products Service Configuration

In the quick-start.Products directory, create a file named subgraph-config.json with the following content:

{
  "subgraph": "Products",
  "http": {
    "baseAddress": "http://localhost:5003/graphql"
  }
}

Orders Service Configuration

In the quick-start.Orders directory, create a subgraph-config.json file:

{
  "subgraph": "Orders",
  "http": {
    "baseAddress": "http://localhost:5004/graphql"
  }
}

Ensure that the baseAddress matches the actual endpoints where each service is running.

Exporting the Schemas

Each service needs to export its schema to a schema.graphql file. Assuming you are using HotChocolate.AspNetCore.CommandLine and have included app.RunWithGraphQLCommands(args); in your Program.cs, you can generate the schema file by running:

dotnet run -- schema export --output schema.graphql

Execute this command in both the quick-start.Products and quick-start.Orders directories to generate their respective schema files.

Packing the Subgraphs

With the configuration and schema files in place, package each service into a Fusion subgraph package (.fsp file) by running the following command in each service directory:

fusion subgraph pack

This command creates an .fsp file containing the schema and configuration for each subgraph, preparing them for composition.

Step 4: Composing the Gateway Schema

Now that we have packaged the subgraphs, we can compose them into a unified schema that the gateway will serve.

Composing Subgraphs into a Gateway Package

Navigate to the quick-start.Gateway project directory and compose the subgraphs into a Fusion gateway package (.fgp file):

fusion compose -p gateway.fgp -s ../quick-start.Orders
fusion compose -p gateway.fgp -s ../quick-start.Products

Here:

• -p gateway.fgp specifies the output package file for the gateway.
• -s points to each subgraph package you want to include.

This process merges the schemas from both services into a single schema that the gateway can serve to clients.

Starting the Gateway

With the composition complete, start the gateway by running:

dotnet run

The gateway is now running and ready to accept queries from clients, providing a unified API that represents both the Products and Orders services.

Step 5: Querying the Unified API

You can now query both services through the gateway's single endpoint, demonstrating how Fusion seamlessly integrates multiple GraphQL services.

Example Query

Try running the following query against the gateway:

query {
  products {
    id
    name
    price
  }
  orders {
    id
    name
    items {
      id
      quantity
      productId
    }
  }
}

This query fetches data from both the Products and Orders services. The gateway handles the distribution of the query to the appropriate services and assembles the results before returning them to the client.

Inspecting the Query Plan

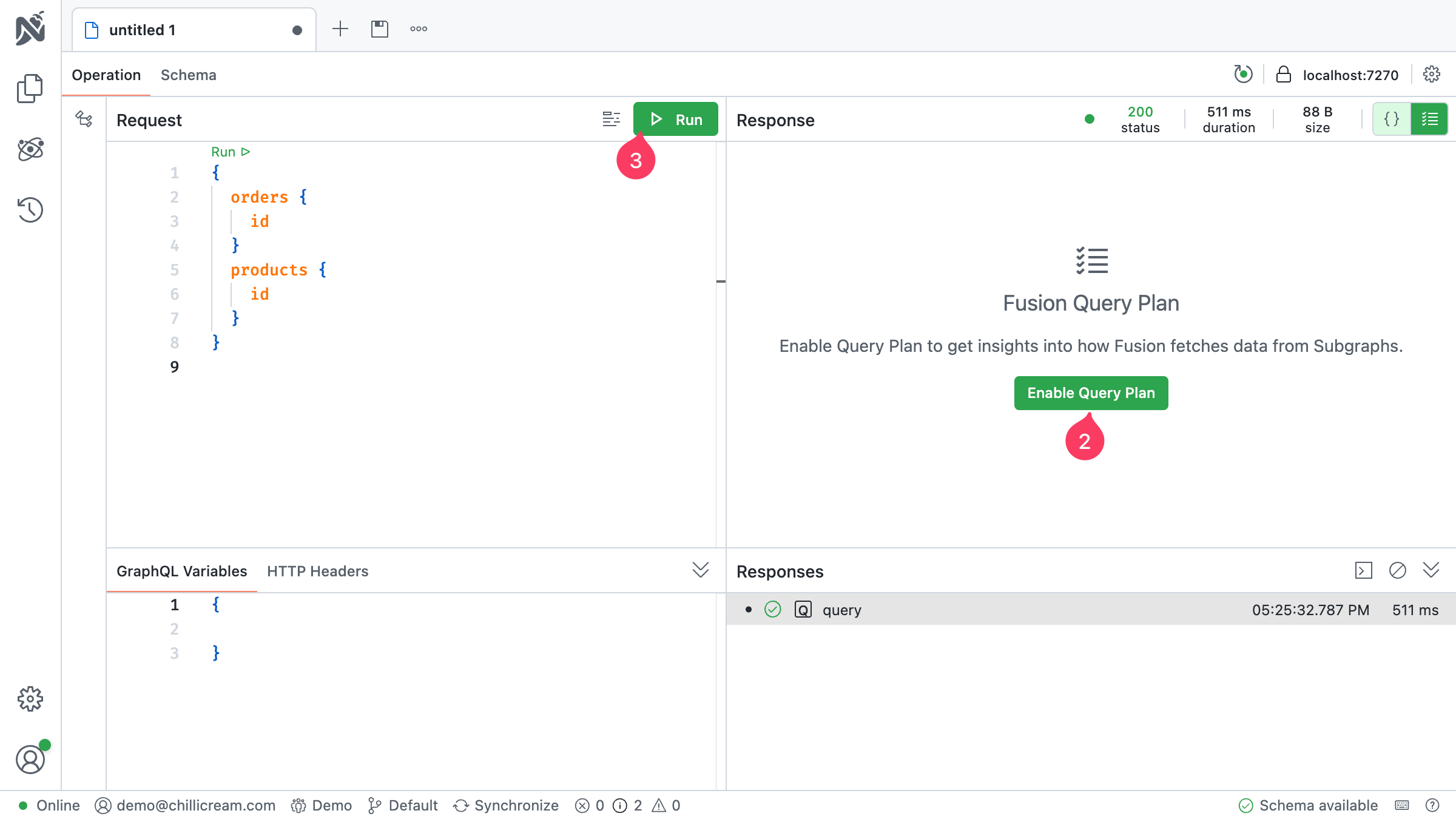

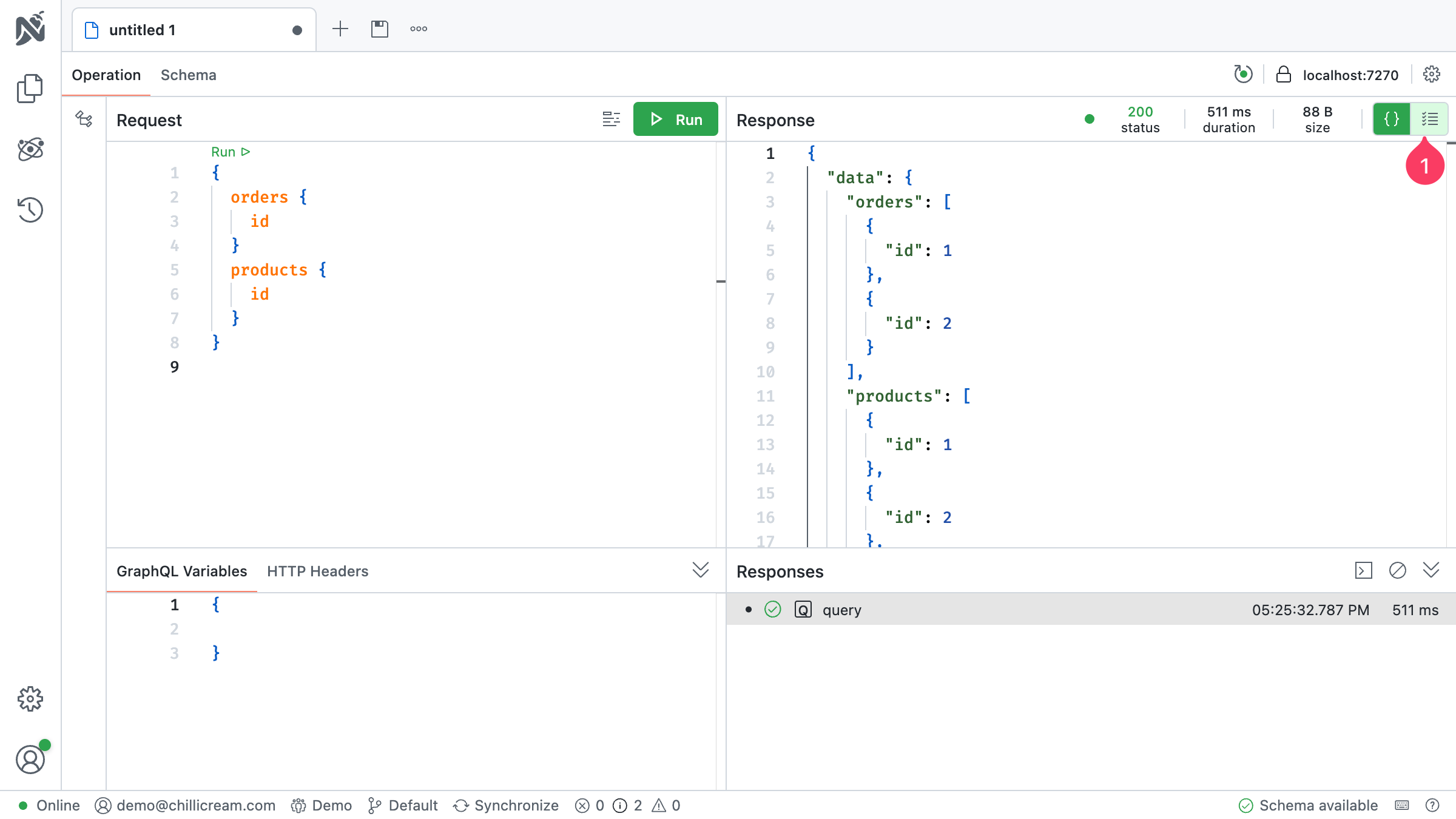

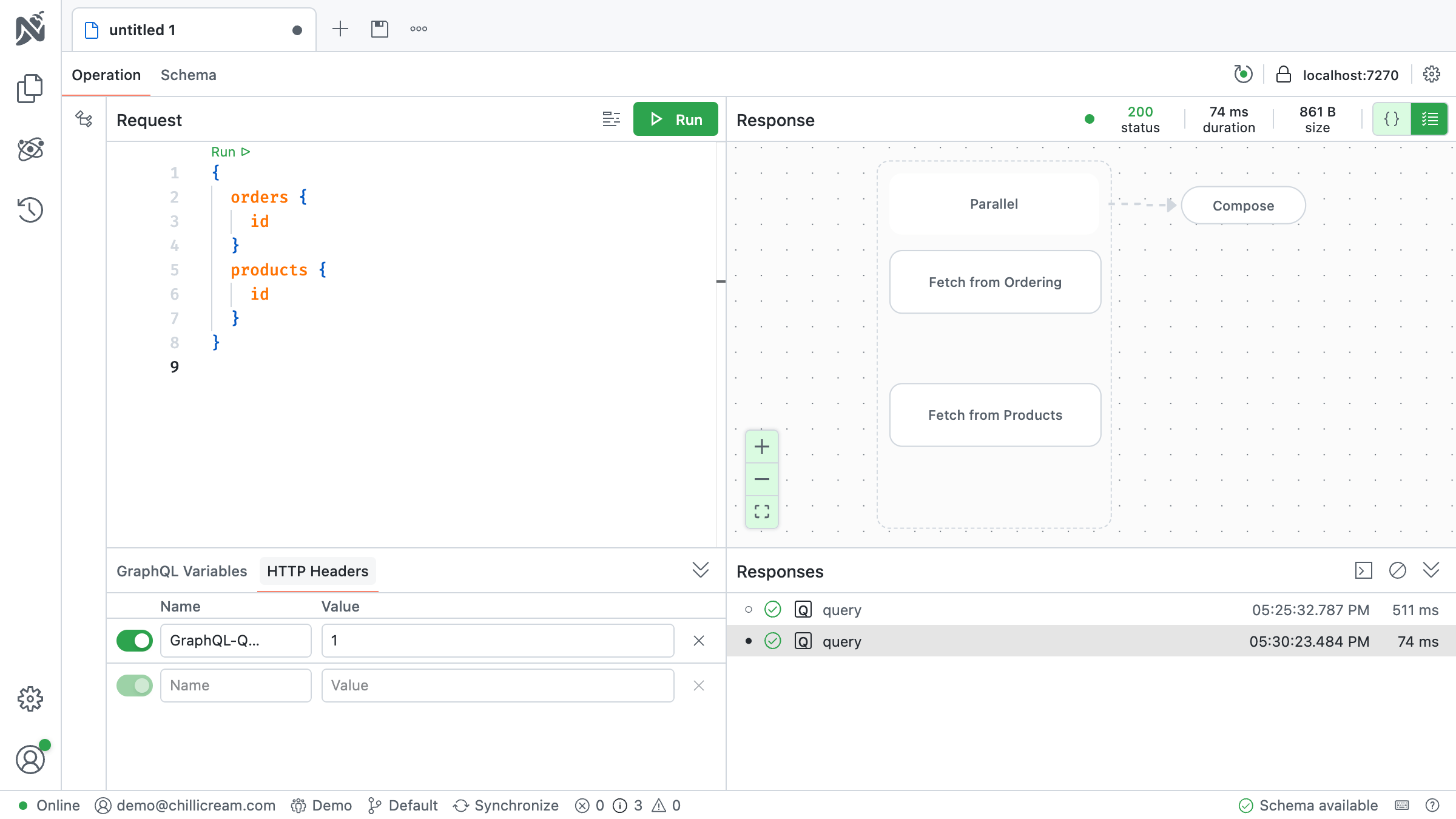

Using Nitro, you can inspect the query plan to see how the gateway orchestrates the requests. You'll observe that the gateway fetches data from the products and orders services in parallel, optimizing performance and reducing latency.

Step 6: Implementing Lookups for Cross-Service References

Currently, the LineItem type in the Orders service includes a productId field that references a product but doesn't provide detailed product information. We can enhance the schema to allow clients to fetch product details directly through the LineItem type, leveraging Fusion's lookup capabilities.

Modifying the Orders Service

We need to adjust the LineItem type in the Orders service to include a Product field instead of just productId. This involves adding a Product type and resolving it using the existing productId.

In your Orders service, update the LineItemType class as follows:

[ObjectType<LineItem>]
public static partial class LineItemType
{
    static partial void Configure(IObjectTypeDescriptor<LineItem> descriptor)
    {
        descriptor.Ignore(x => x.ProductId);
    }

    public static Product GetProduct([Parent] LineItem lineItem)
        => new Product(lineItem.ProductId);
}

public sealed record Product(int Id);

• Ignoring productId: The Configure method tells the schema to ignore the productId field, preventing it from appearing in the GraphQL schema.
• Resolving Product: The GetProduct method returns a new Product instance with the Id set to the productId from the LineItem.

Updating the Schema

After making these changes, regenerate the schema.graphql file for the Orders service:

dotnet run -- schema export --output schema.graphql

Modifying the Products Service

To enable the gateway to resolve Product details by id, we need to add a query to the Products service that allows fetching a product by its id.

In the Products service, add the following code:

public static class ProductOperations
{
    [Query]
    [Lookup]
    [Internal]
    public static Product GetProductById(int id)
    {
        // Replace with actual data retrieval logic
        return new Product
        {
            Id = id,
            Name = $"Product {id}",
            Sku = $"SKU{id}",
            Description = $"Description {id}",
            Price = id
        };
    }
}

The [Lookup] and [Internal] attributes are from the HotChocolate.Fusion.SourceSchema package. Technically, these attributes are not required, yet, it's a good practice to mark all lookup methods with [Lookup]. In case the lookup should not be used as an entry point in a query, you can mark it as [Internal].

You can learn more about lookups in the Fusion documentation.

This method provides a way for the gateway to fetch a Product by its id, which is essential for resolving cross-service references.

Regenerating and Repacking Subgraphs

After updating both services, export their schemas and pack them into subgraph packages again. For each service, run:

dotnet run -- schema export --output schema.graphql
fusion subgraph pack

Recomposing the Gateway Schema

With the updated subgraphs, recompose the gateway schema:

fusion compose -p gateway.fgp -s ../quick-start.Products
fusion compose -p gateway.fgp -s ../quick-start.Orders

Restarting the Gateway

Restart the gateway to apply the new schema:

dotnet run

The gateway now understands how to resolve Product details when encountered within LineItem objects.

Step 7: Querying Cross-Service Data

With the services updated and the gateway reconfigured, you can now write queries that fetch detailed product information through the LineItem type in orders.

Try running the following query:

query {
  orders {
    id
    name
    items {
      id
      quantity
      product {
        id
        name
        price
      }
    }
  }
}

This query fetches orders and, for each line item, retrieves detailed information about the associated product, even though the product data resides in a different service.

Step 8: Setting up Nitro

Nitro simplifies deployment orchestration, allowing downstream services to be deployed independently without requiring a full gateway redeployment.

Learn more about the DevOps process with Nitro in the DevOps documentation..

Next Steps

• Lookups: Learn more about resolving entities in Fusion using lookups. Read the Lookups documentation
• Entities: Understand how Fusion handles entities and relationships across services. Explore the Entity Relationships guide
• Engage with the Community: Join the ChilliCream community to share your experiences, seek support, and contribute to the ongoing development of Fusion. Joint the Slack Community
